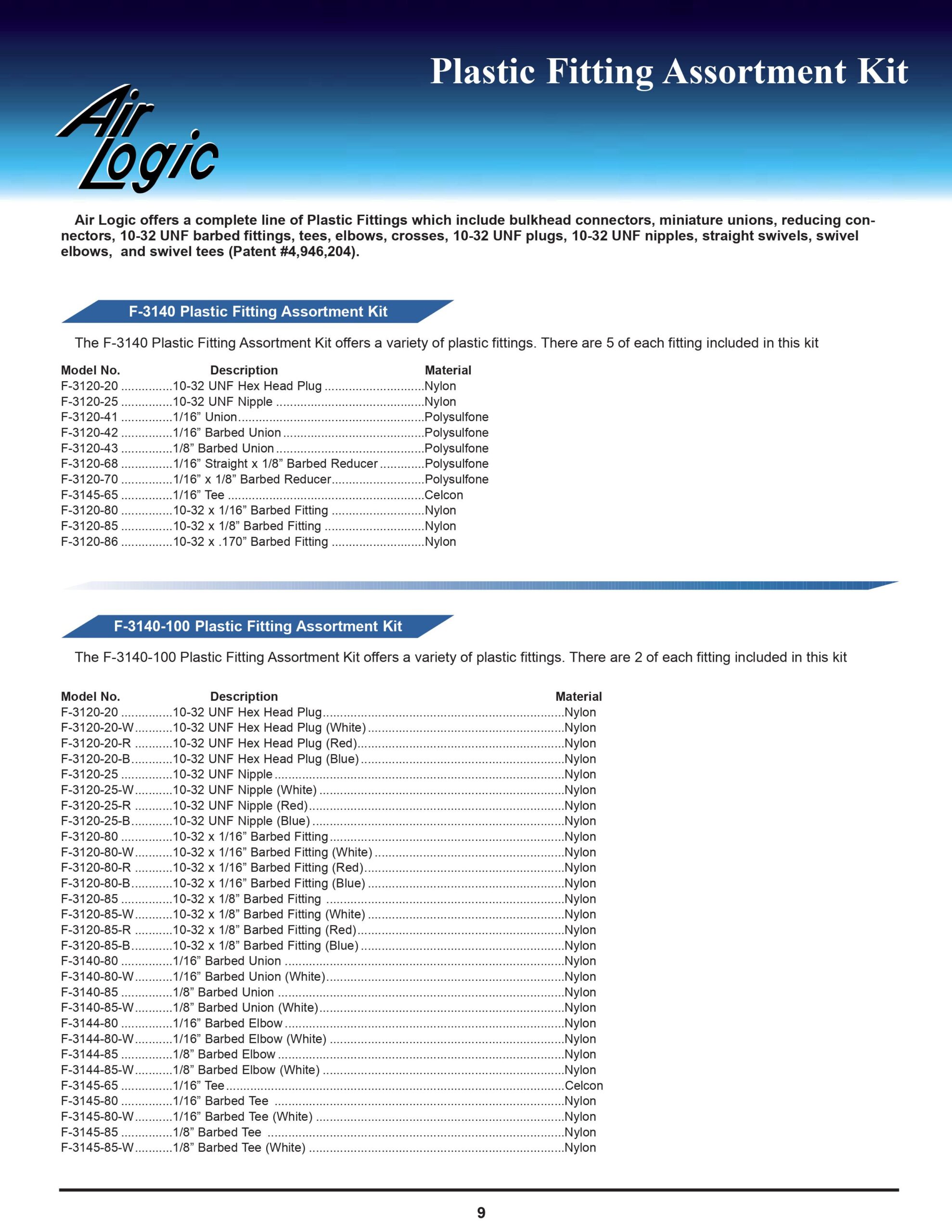

There are 2 of each fitting included in this kit.
FEATURES
-
-
- Variety of plastic fittings
- Made of Nylon and one Celcon Tee
-
SPECIFICATIONS
| Model No. | Description | Material |
|---|---|---|
| F-3120-20 | 10-32 UNF Hex Head Plug | Nylon |
| F-3120-20-W | 10-32 UNF Hex Head Plug (White) | Nylon |
| F-3120-20-R | 10-32 UNF Hex Head Plug (Red) | Nylon |
| F-3120-20-B | 10-32 UNF Hex Head Plug (Blue) | Nylon |
| F-3120-25 | 10-32 UNF Nipple | Nylon |
| F-3120-25-W | 10-32 UNF Nipple (White) | Nylon |
| F-3120-25-R | 10-32 UNF Nipple (Red) | Nylon |
| F-3120-25-B | 10-32 UNF Nipple (Blue) | Nylon |
| F-3120-80 | 10-32 x Ø1.6 mm (1/16″) Barbed Fitting | Nylon |
| F-3120-80-W | 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (White) | Nylon |
| F-3120-80-R | 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (Red) | Nylon |
| F-3120-80-B | 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (Blue) | Nylon |
| F-3120-85 | 10-32 x Ø3.2 mm (1/8″) Barbed Fitting | Nylon |
| F-3120-85-W | 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (White) | Nylon |
| F-3120-85-R | 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (Red) | Nylon |
| F-3120-85-B | 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (Blue) | Nylon |
| F-3140-80 | Ø1.6 mm (1/16″) Barbed Union | Nylon |
| F-3140-80-W | Ø1.6 mm (1/16″) Barbed Union (White) | Nylon |
| F-3140-85 | Ø3.2 mm (1/8″) Barbed Union | Nylon |
| F-3140-85-W | Ø3.2 mm (1/8″) Barbed Union (White) | Nylon |
| F-3144-80 | Ø1.6 mm (1/16″) Barbed Elbow | Nylon |
| F-3144-80-W | Ø1.6 mm (1/16″) Barbed Elbow (White) | Nylon |
| F-3144-85 | Ø3.2 mm (1/8″) Barbed Elbow | Nylon |
| F-3144-85-W | Ø3.2 mm (1/8″) Barbed Elbow (White) | Nylon |
| F-3145-65 | Ø1.6 mm (1/16″) Tee | Celcon |
| F-3145-80 | Ø1.6 mm (1/16″) Barbed Tee | Nylon |
| F-3145-80-W | Ø1.6 mm (1/16″) Barbed Tee (White) | Nylon |
| F-3145-85 | Ø3.2 mm (1/8″) Barbed Tee | Nylon |
| F-3145-85-W | Ø3.2 mm (1/8″) Barbed Tee (White) | Nylon |
PORT CONNECTIONS
80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
MOUNTING
10-32 UNF Threads
