200 Master Kit

200 Master Kit

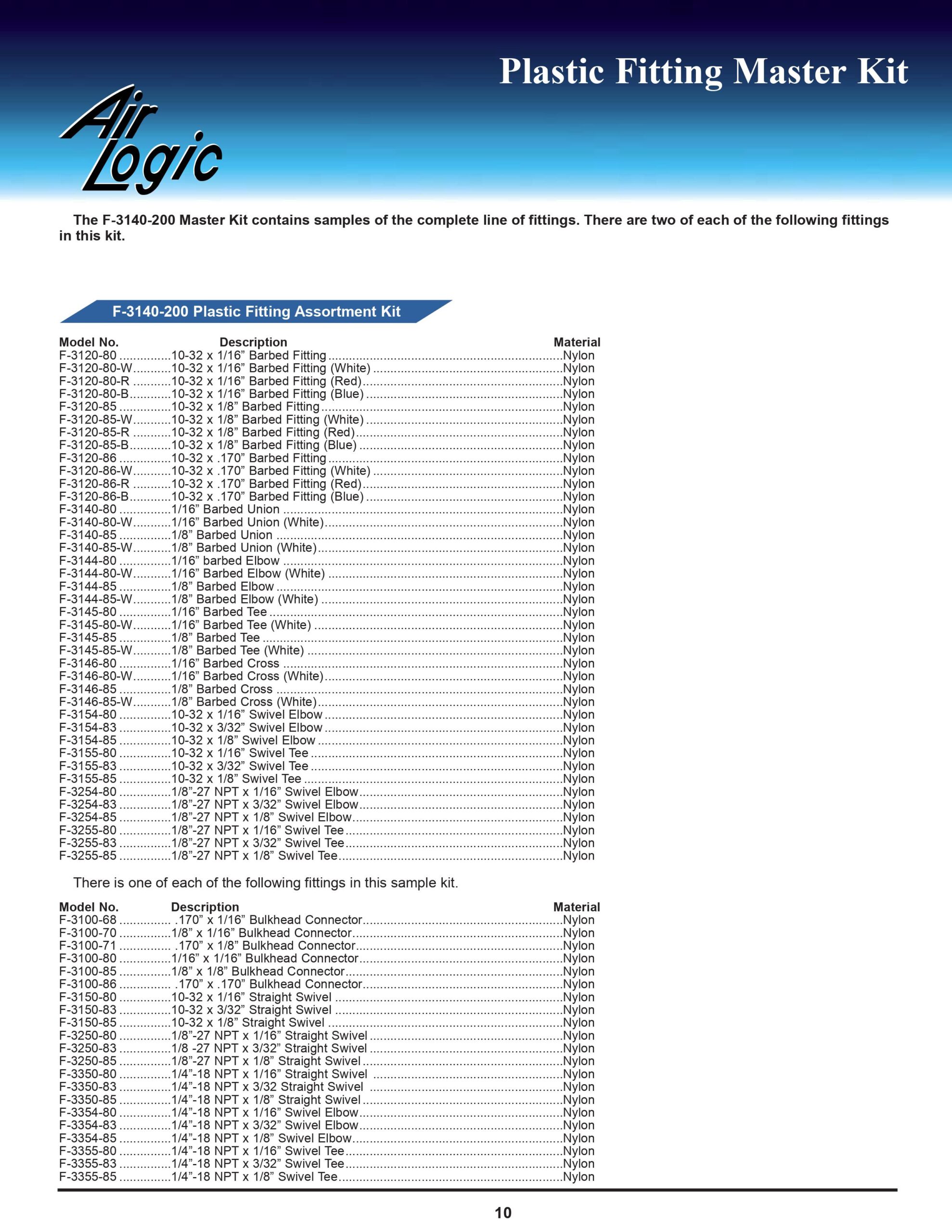

The F-3140-200 Master Kit contains samples of the complete line of fittings.

CHF 140.55 (excl. VAT)

Quantity discounts
1-9 CHF 140.55
10-99 CHF 118.06
100-499 CHF 108.22
500-1999 CHF 96.98
2000-4999 CHF 89.95
5000+ CHF 88.55
Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: F-3140-200 Categories: ,

There is one or two of each of the fittings included in this kit.

FEATURES

  • Contains samples of the complete line of fittings

SPECIFICATIONS

Model No. Description Material
F-3120-80 10-32 x Ø1.6 mm (1/16″) Barbed Fitting Nylon
F-3120-80-W 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (White) Nylon
F-3120-80-R 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (Red) Nylon
F-3120-80-B 10-32 x Ø1.6 mm (1/16″) Barbed Fitting (Blue) Nylon
F-3120-85 10-32 x Ø3.2 mm (1/8″) Barbed Fitting Nylon
F-3120-85-W 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (White) Nylon
F-3120-85-R 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (Red) Nylon
F-3120-85-B 10-32 x Ø3.2 mm (1/8″) Barbed Fitting (Blue) Nylon
F-3120-86 10-32 x Ø4.3 mm (0.170″) Barbed Fitting Nylon
F-3120-86-W 10-32 x Ø4.3 mm (0.170″) Barbed Fitting (White) Nylon
F-3120-86-R 10-32 x Ø4.3 mm (0.170″) Barbed Fitting (Red) Nylon
F-3120-86-B 10-32 x Ø4.3 mm (0.170″) Barbed Fitting (Blue) Nylon
F-3140-80 Ø1.6 mm (1/16″) Barbed Union Nylon
F-3140-80-W Ø1.6 mm (1/16″) Barbed Union (White) Nylon
F-3140-85 Ø3.2 mm (1/8″) Barbed Union Nylon
F-3140-85-W Ø3.2 mm (1/8″) Barbed Union (White) Nylon
F-3144-80 Ø1.6 mm (1/16″) Barbed Elbow Nylon
F-3144-80-W Ø1.6 mm (1/16″) Barbed Elbow (White) Nylon
F-3144-85 Ø3.2 mm (1/8″) Barbed Elbow Nylon
F-3144-85-W Ø3.2 mm (1/8″) Barbed Elbow (White) Nylon
F-3145-80 Ø1.6 mm (1/16″) Barbed Tee Nylon
F-3145-80-W Ø1.6 mm (1/16″) Barbed Tee (White) Nylon
F-3145-85 Ø3.2 mm (1/8″) Barbed Tee Nylon
F-3145-85-W Ø3.2 mm (1/8″) Barbed Tee Nylon
F-3146-80 Ø1.6 mm (1/16″) Barbed Cross Nylon
F-3146-80-W Ø1.6 mm (1/16″) Barbed Cross (White) Nylon
F-3146-85 Ø3.2 mm (1/8″) Barbed Cross Nylon
F-3146-85-W Ø3.2 mm (1/8″) Barbed Cross (White) Nylon
F-3154-80 10-32 x Ø1.6 mm (1/16″) Swivel Elbow Nylon
F-3154-83 10-32 x Ø2.4mm (3/32″) Swivel Elbow Nylon
F-3154-85 10-32 x Ø3.2 mm (1/8″) Swivel Elbow Nylon
F-3155-80 10-32 x Ø1.6 mm (1/16″) Swivel Tee Nylon
F-3155-83 10-32 x Ø2.4mm (3/32″) Swivel Tee Nylon
F-3155-85 10-32 x Ø3.2 mm (1/8″) Swivel Tee Nylon
F-3254-80 Ø3.2 mm (1/8″) -27 NPT x Ø1.6 mm (1/16″) Swivel Elbow Nylon
F-3254-83 1/8″-27 NPT x Ø2.4mm (3/32″) Swivel Elbow Nylon
F-3254-85 1/8″-27 NPT x Ø3.2 mm (1/8″) Swivel Elbow Nylon
F-3255-80 1/8″-27 NPT x Ø1.6 mm (1/16″) Swivel Tee Nylon
F-3255-83 1/8″-27 NPT x Ø2.4mm (3/32″) Swivel Tee Nylon
F-3255-85 1/8″-27 NPT x Ø3.2 mm (1/8″) Swivel Tee Nylon



Model No. Description Material
F-3100-68 0.170″ x Ø1.6 mm (1/16″) Bulkhead Connector Nylon
F-3100-70 1/8″ x Ø1.6 mm (1/16″) Bulkhead Connector Nylon
F-3100-71 0.170″ x Ø3.2 mm (1/8″) Bulkhead Connector Nylon
F-3100-80 1/16″ x Ø1.6 mm (1/16″) Bulkhead Connector Nylon
F-3100-85 Ø3.2 mm (1/8″) x Ø3.2 mm (1/8″) Bulkhead Connector Nylon
F-3100-86 0.170″ x Ø4.3 mm (0.170″) Bulkhead Connector Nylon
F-3150-80 10-32 x Ø1.6 mm (1/16″) Straight Swivel Nylon
F-3150-83 10-32 x Ø2.4mm (3/32″) Straight Swivel Nylon
F-3150-85 10-32 x Ø3.2 mm (1/8″) Straight Swivel Nylon
F-3250-80 1/8″-27 NPT x Ø1.6 mm (1/16″) Straight Swivel Nylon
F-3250-83 1/8″-27 NPT x Ø2.4mm (3/32″) Straight Swivel Nylon
F-3250-85 1/8″-27 NPT x Ø3.2 mm (1/8″) Straight Swivel Nylon
F-3350-80 1/4″-18 NPT x Ø1.6 mm (1/16″) Straight Swivel Nylon
F-3350-83 1/4″-18 NPT x Ø2.4mm (3/32″) Straight Swivel Nylon
F-3350-85 1/4″-18 NPT x Ø3.2 mm (1/8″) Straight Swivel Nylon
F-3354-80 1/4″-18 NPT x Ø1.6 mm (1/16″) Swivel Elbow Nylon
F-3354-83 1/4″-18 NPT x Ø2.4mm (3/32″) Swivel Elbow Nylon
F-3354-85 1/4″-18 NPT x Ø3.2 mm (1/8″) Swivel Elbow Nylon
F-3355-80 1/4″-18 NPT x Ø1.6 mm (1/16″) Swivel Tee Nylon
F-3355-83 1/4″-18 NPT x Ø2.4mm (3/32″) Swivel Tee Nylon
F-3355-85 1/4″-18 NPT x Ø3.2 mm (1/8″) Swivel Tee Nylon



Fitting Configuration

80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, 85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing, 86 – Ø5.60 mm barb for Ø4.3 mm I.D. tubing
