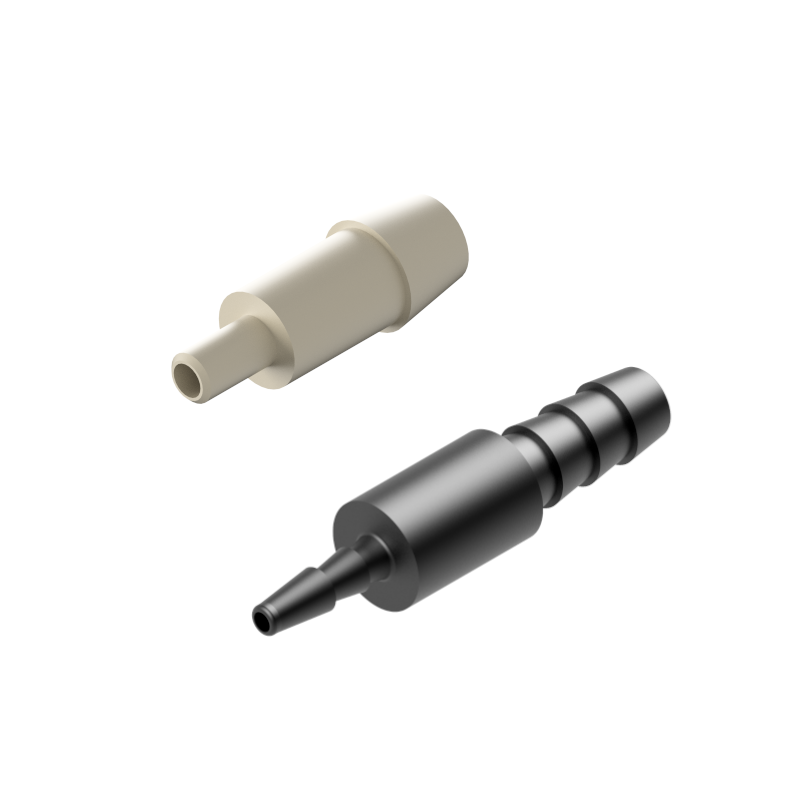

The Reducing Connectors are precision molded of polysulfone (PSU).
They join 1/16” I.D. to 1/8” or 1/16” I.D. to 0.170″ I.D. flexible tubing.
FEATURES
• Low Cost
SPECIFICATIONS
Maximum Supply Pressure: Barbed Ports – 8.62 bar (125 PSI) Straight Ports – 1.72 bar (25 PSI)
Operating Temperature: 5 to 48°C (40 to 120 °F)
MATERIAL
Polysulfone (PSU)
PORT CONNECTIONS
Straight ports for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
B86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
MOUNTING
Inline
