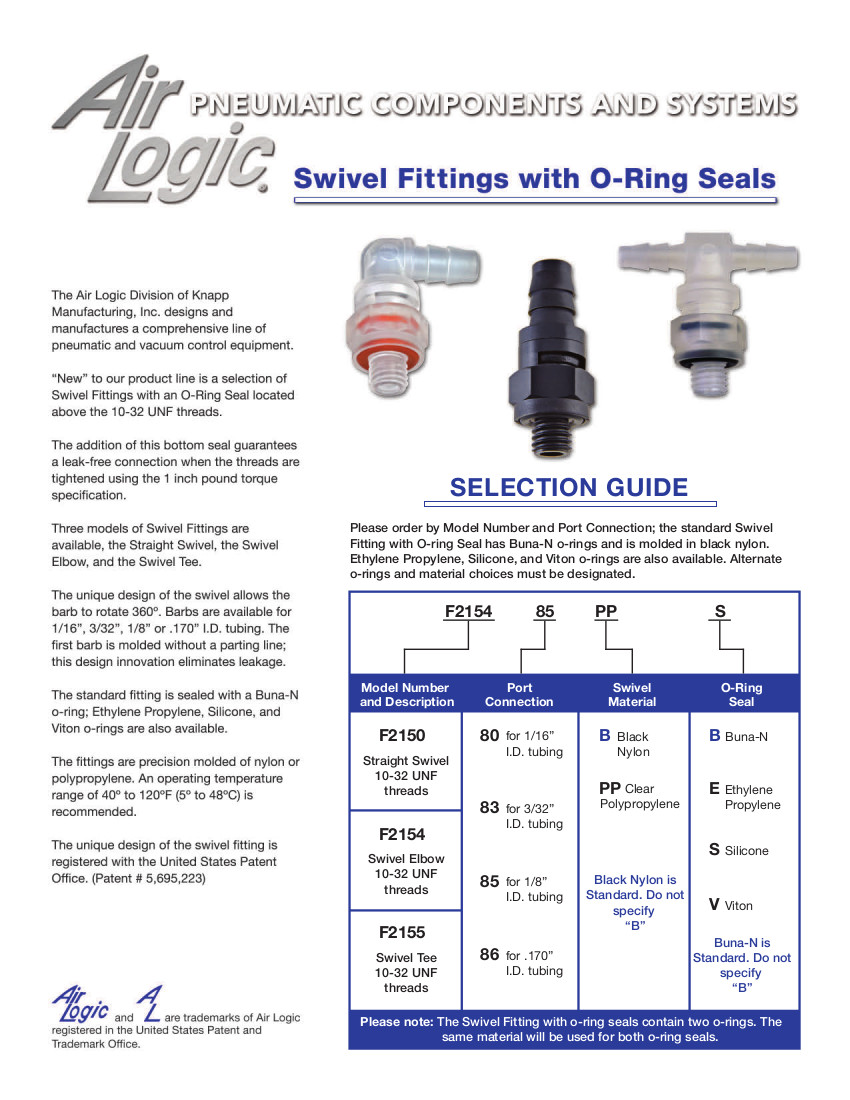

The swivels are available with barbs for 1/16″, 3/32″,1/8″ or 0.170″ I.D. flexible tubing and with 10-32 UNF threads, 1/8-27 NPT or 1/4-18 NPT. The unique design allows the fitting to swivel 360°. The standard fitting is sealed with a Buna-N o-ring; Ethylene Propylene, Silicone and Viton o-rings are available. The swivel fittings are precision molded of nylon or polypropylene.
SPECIFICATIONS

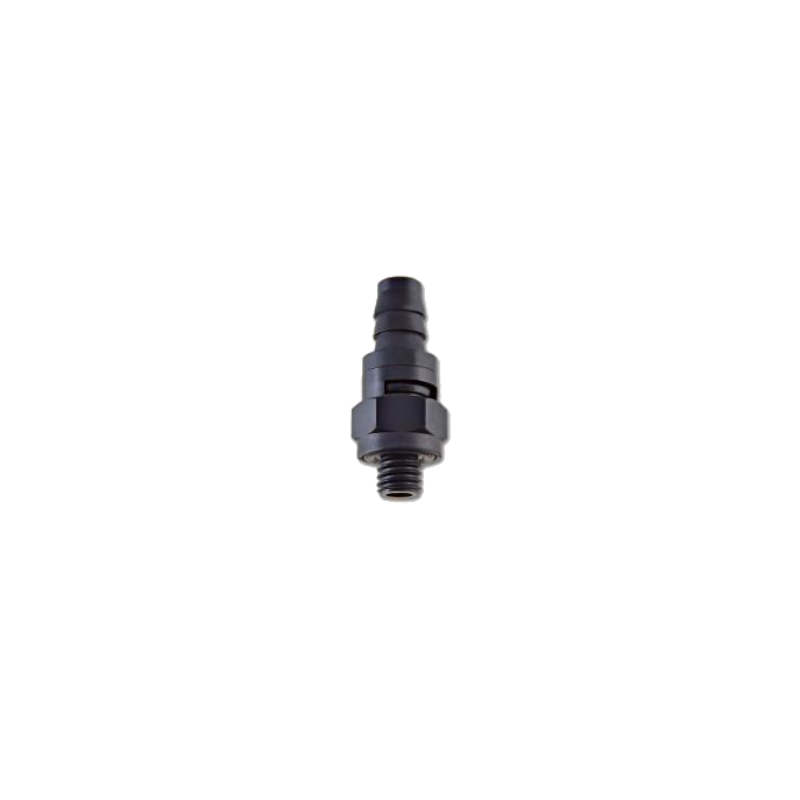

Barb Configuration: Straight
Operating Temperatures: 5 to 48 °C (40 to 120 °F)
Supply Pressure: 8.62 bar (125 PSI)
MATERIAL
Housing: Nylon (black) Polypropylene (clear)
O-Ring: Buna-N, Ethylene Polypropylene, Silicone or Viton
PORT CONNECTIONS
80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
83: Barb Ø3.63mm (0.143″) for Ø2.4mm (3/32″) flexible I.D. tubing
85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
MOUNTING
10-32 UNF (1 inch pound torque specification)
