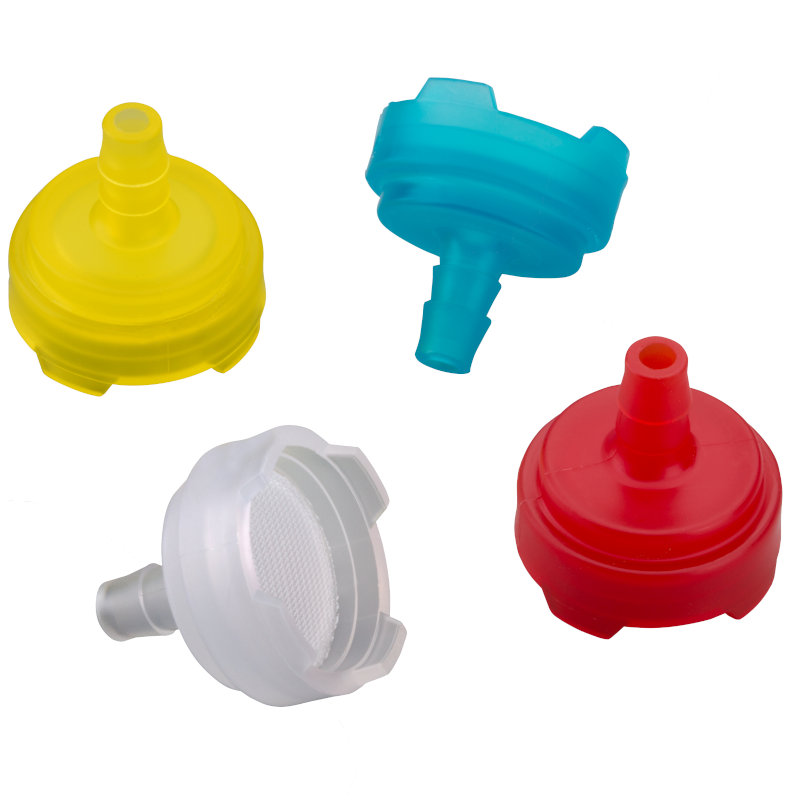

The shape of the part provides a flow path, even if placed against a flat surface. Polypropylene filter mediums are available. The body color indicates the filter type and mesh size. The product has a double barbed fitting for a 1/8″ vacuum line.
Common applications include:
- Vacuum Filter
- Vacuum Intake
- Suction Filter
- Siphon Filter
- Fluid Pickup
- Filtered Entry
- Filtered Source
- Filtered Strainer
- Filtered Exhaust
- Filtered Vent
SPECIFICATIONS
Filtered Cross Sectional Area: 0.15 in²
Max Pressure: 8.62 bar (125 PSI)
Max Temperature: 60 °C (140 °F)
MATERIALS
Housing Material: Polypropylene
PORT CONNECTIONS

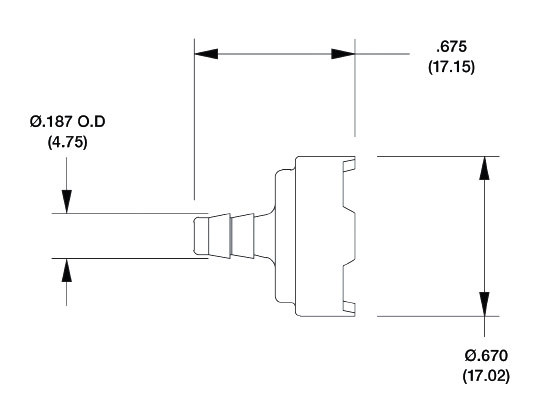

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
