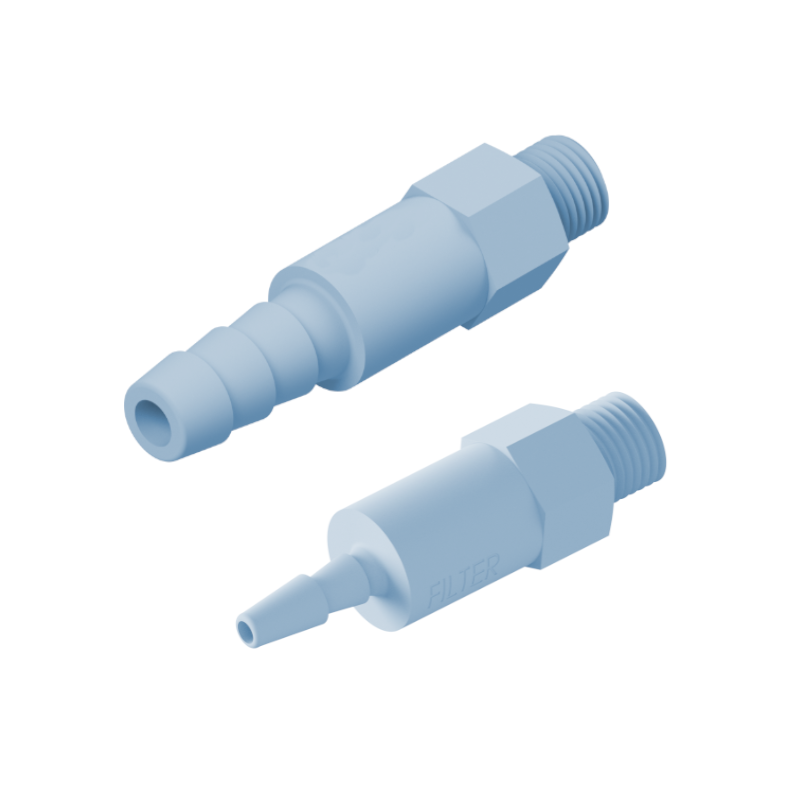

This disposable miniature filter is designed to remove most contaminate particles in compressed air systems. It is encased in a male 10-32 UNF threaded housing with barbs for 1/16″ or 1/8″ I.D. tubing. The filter is precision molded of polysulfone material. The Dutch Weave wire screen is constructed of stainless steel and resistant to high pressure. The filters are available in 5, 25, 43 and 73 microns. Maximum supply is 125 PSI.
FEATURES
- Low Cost
- Disposable
- Small Size
- Low Pressure Drop
SPECIFICATIONS
Maximum Supply: 8.62 bar (125 PSI)
Operating Temperature: 5 to 48 °C (40 to 120 °F)
MATERIALS
Housing: Blue Polysulfone
Filter Media: 316 stainless steel filter screen
MOUNTING
10-32 UNF male threads
PORT CONNECTIONS
B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
