Orifice Assortment Kit

Orifice Assortment Kit

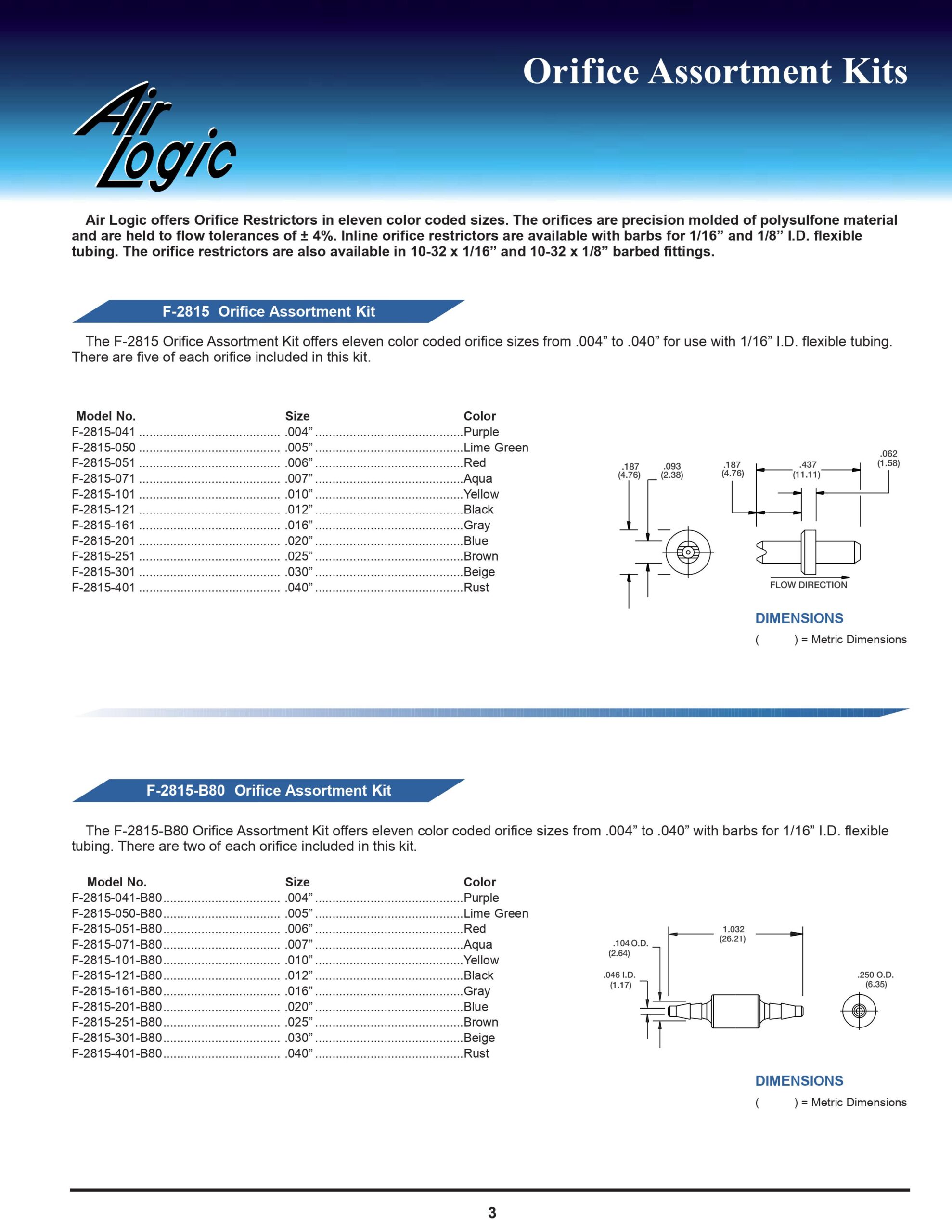

The F-2815 Orifice Assortment Kit offers eleven color coded orifice sizes from .004″ to .040″ for use with 1/16″ I.D. flexible tubing.

CHF 84.35 (excl. VAT)

Quantity discounts
1-9 CHF 84.35
10-99 CHF 70.85
100-499 CHF 64.95
500-1999 CHF 58.20
2000-4999 CHF 53.98
5000+ CHF 53.14
Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: F-2815 Categories: ,

There are five of each orifice included in this kit.

FEATURES

  • Eleven color coded orifice sizes
  • Sizes range from 0.004″ to 0.040″
  • Use with 1/16″ I.D. flexible tubing

SPECIFICATIONS

Model No. Size Color
F-2815-041 0.10 mm (0.004″) Purple
F-2815-050 0.13 mm (0.005″) Lime Green
F-2815-051 0.15 mm (0.006″) Red
F-2815-071 0.18 mm (0.007″) Aqua
F-2815-101 0.25 mm (0.010″) Yellow
F-2815-121 0.30 mm (0.012″) Black
F-2815-161 0.41 mm (0.016″) Gray
F-2815-201 0.51 mm (0.020″) Blue
F-2815-251 0.64 mm (0.025″) Brown
F-2815-301 0.76 mm (0.030″) Beige
F-2815-401 1.02 mm (0.040″) Rust

MATERIALS

Housing: Polysulfone

PORT CONNECTIONS

Straight ports for Ø1.6 mm 1/16″ flexible I.D. tubing

MOUNTING

Inline installation

Orifice Diameter

Ø 0.10 mm (0.004”) – Purple, Ø 0.13mm (0.005”) – Lime Green, Ø 0.15mm (0.006”) – Red, Ø 0.18mm (0.007'') – Aqua Green, Ø 0.25mm (0.010'') – Yellow, Ø 0.30mm (0.012'') – Black, Ø 0.41mm (0.016'') – Gray, Ø 0.51mm (0.020'') – Blue, Ø 0.64mm (0.025'') – Brown, Ø 0.76mm (0.030'') – Beige, Ø 1.02mm (0.040'') – Rust
