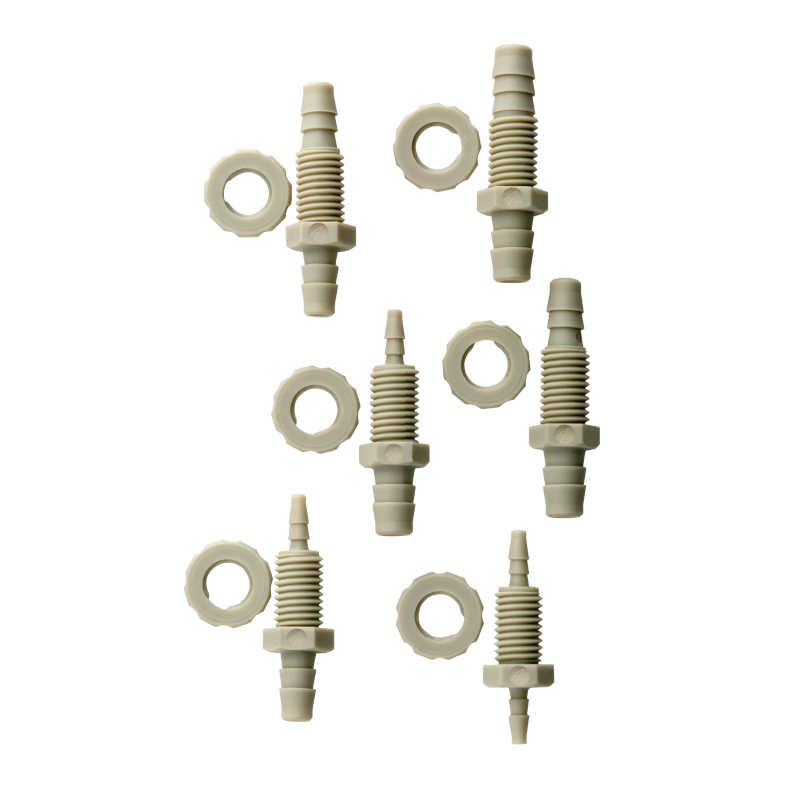

They are available in two models, the Reducing or Straight Bulkhead Connector. The connectors join 1/16”,1/8” or 0.170″ I.D. tubing and are panel mounted.
FEATURES
- Reducing and Straight Port Connections
- Polypropylene
- Joins 1/16″, 1/8″ or 0.170″ I.D. tubing
- Panel mounted
SPECIFICATIONS
Maximum Supply: 8.62 bar (125 PSI)
Operating Temperature: -38 to 93 °C (-40 to 200 °F)
MATERIAL
Polypropylene Grey
PORT CONNECTIONS
68: Reducing Connector Ø4.3 mm (0.170″) for Ø1.6 mm (1/16″) flexible I.D. tubing
70: Reducing Connector Ø3.2 mm (1/8″) for Ø1.6 mm (1/16″) flexible I.D. tubing
71: Reducing Connector Ø4.3 mm (0.170″) for Ø3.2 mm (1/8″) flexible I.D. tubing
80: Straight Connector Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
85: Straight Connector Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
86: Straight Connector Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
MOUNTING
External 1/4-28 UNF threads for panel mounting; a nut is supplied
