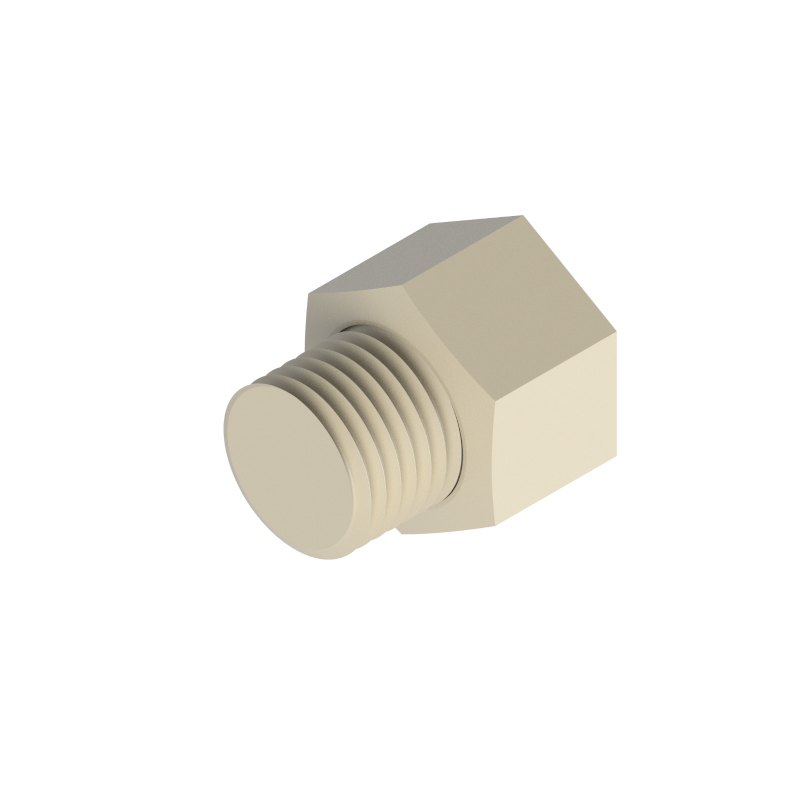

Polypropylene Plug

Polypropylene Plug

These precision molded polypropylene plugs seal without a gasket.
10-32 UNF Threads.

CHF 0.50 (excl. VAT)

Quantity discounts
1-99 CHF 0.50
100-999 CHF 0.38
1000-9999 CHF 0.33
10000-24999 CHF 0.31
25000-49999 CHF 0.30
50000-99999 CHF 0.29
100000+ CHF 0.50
Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: F-3120-20-PP Categories: ,

The 10-32 Plugs are precision molded of polypropylene.

FEATURES

  • Precision molded
  • 10-32 UNF Threads
  • Threads Seal without a gasket

SPECIFICATIONS

Maximum Supply: 8.62 bar (125 PSI)
Operating Temperature: -38 to 93 °C (-40 to 200 °F)

MATERIAL

Polypropylene

MOUNTING

10-32 UNF Thread
Width across flats (AF):  6.22 mm (0.245″)

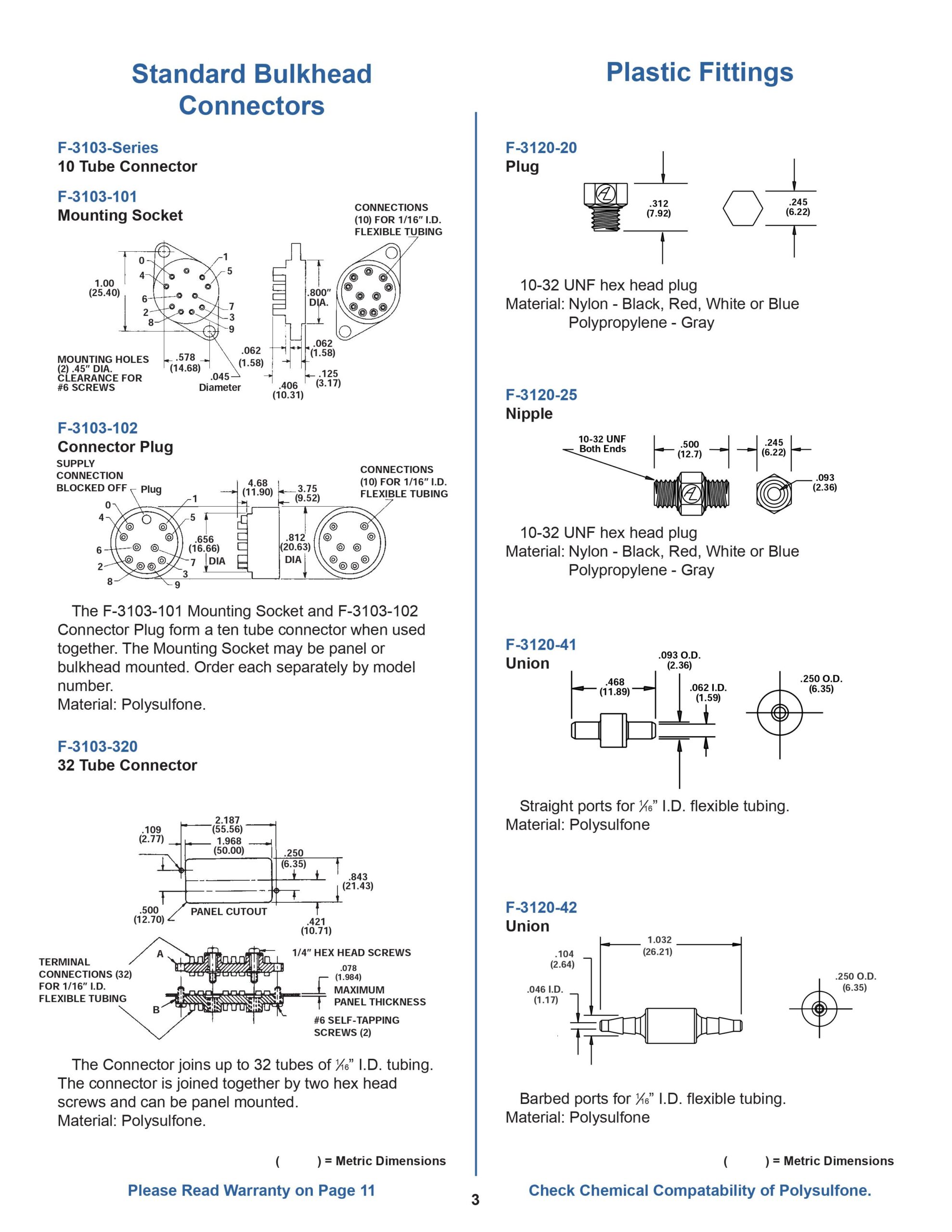

Drawings

3D-Files



Please contact us for other formats.

Catalogs
