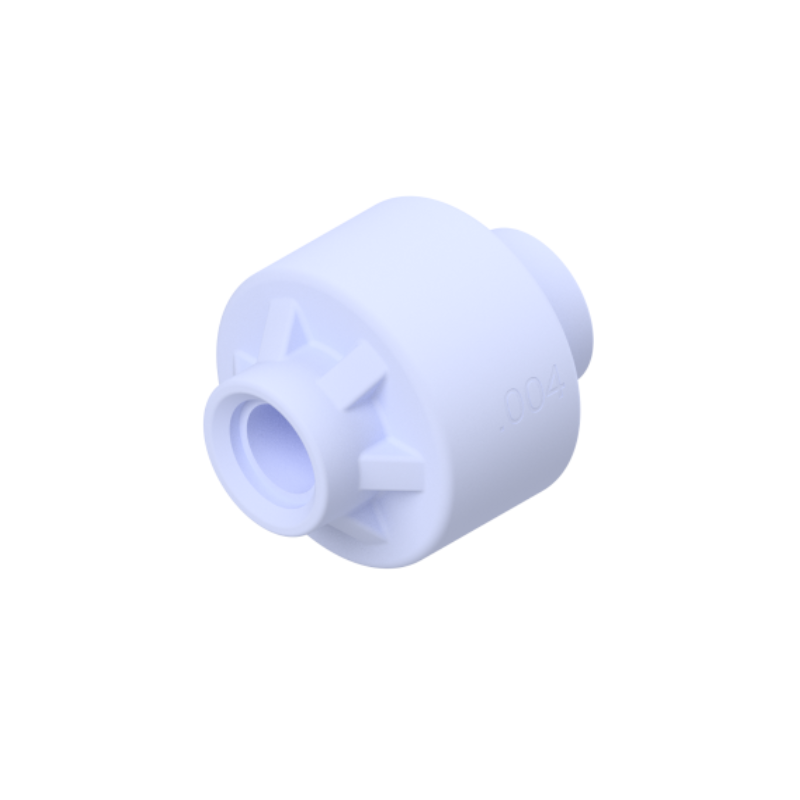

Preset Flow Control with 10-32 nipple

Preset Flow Control with 10-32 nipple

The Preset Flow Control maintains a constant flow in one direction and full flow in the opposite direction.

CHF 12.30 (excl. VAT)

Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: N/A Categories: ,

The operation of the Flow Control is based on the movement of a small disc.
The disc shifts within the housing as the pressure differential changes from forward to reverse. An orifice restrictor is encased in the center of the disc. A flat surface on one side of the disc seals and permits flow through the orifice.
The amount of flow permitted in the reverse direction, which is the sealing side, is determined by the orifice size. The amount of flow permitted in the forward direction is full flow.

FEATURES

  • Precision Molded Orifice
  • Miniature Size
  • Minimum Cracking Pressure
  • Low Cost

SPECIFICATIONS

Maximum Supply: 5.17 bar (75 PSI)
Operating Temperature: 5° to 48 °C (40° to 120 °F)
Recommended Filtration: 5 micron
Cracking Pressure: Less than 0.025 bar (10″ H2O)

MATERIALS

Orifice: Polysulfone
Housing: Gray Polysulfone
Disc: Silicone

PORT CONNECTIONS

10-32 Threads, 10-32 Nipple is Supplied

MOUNTING

Inline

Orifice Diameter

Ø 0.10 mm (0.004”) – Purple, Ø 0.13mm (0.005”) – Lime Green, Ø 0.15mm (0.006”) – Red, Ø 0.18mm (0.007'') – Aqua Green, Ø 0.25mm (0.010'') – Yellow, Ø 0.30mm (0.012'') – Black, Ø 0.41mm (0.016'') – Gray, Ø 0.51mm (0.020'') – Blue, Ø 0.64mm (0.025'') – Brown, Ø 0.76mm (0.030'') – Beige, Ø 1.02mm (0.040'') – Rust

Drawings

3D-Files

Preset Flow Control – F-2804-404-XXX-XXX – STEP

Please contact us for other formats.
