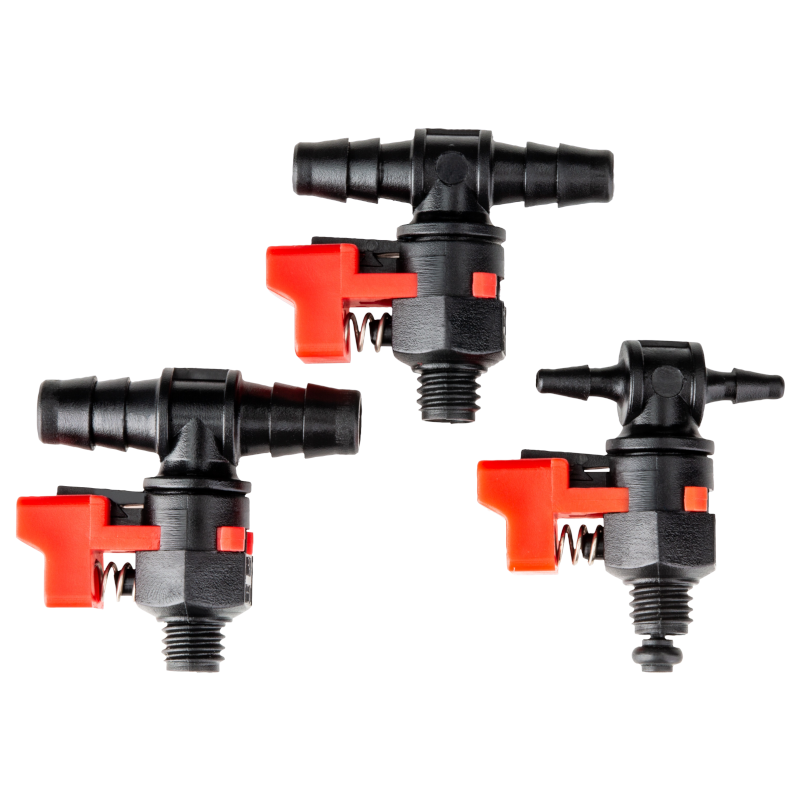

The unique design allows the fitting to swivel 360°. The fitting is sealed with a Buna-N-O’ring. The Quick Disconnect is available with Barbs for 1/16”, 1/8” or 0.170” I.D. tubing. The barb fitting does not have a molded parting line on the first barb. The precision molded design prevents the barb from leaking. The Quick Disconnect is available with 10-32 threads, theunique design of the threads allows the fitting to seal without a gasket. The housing, barb, and Latch-Lock push-button are precision molded of Celcon Acetal The unique design is patented.
- Available with 10-32 UNF threads
- Sealed with Buna-N O-Ring
FEATURES
- Miniature Size
- Straight-thru Flow
- Shut-off Capabilities
SPECIFICATIONS
Maximum Supply: 8.62 bar (125 PSI)
Operating Temperature: 5 to 48 °C (40 to 120 °F)
MATERIALS
Housing: Celcon (white or Black)
Spring: Stainless Steel
O-Ring: Buna-N, Ethylene Propylene (EPDM) and Viton (Silicone on request)
PORT CONNECTIONS

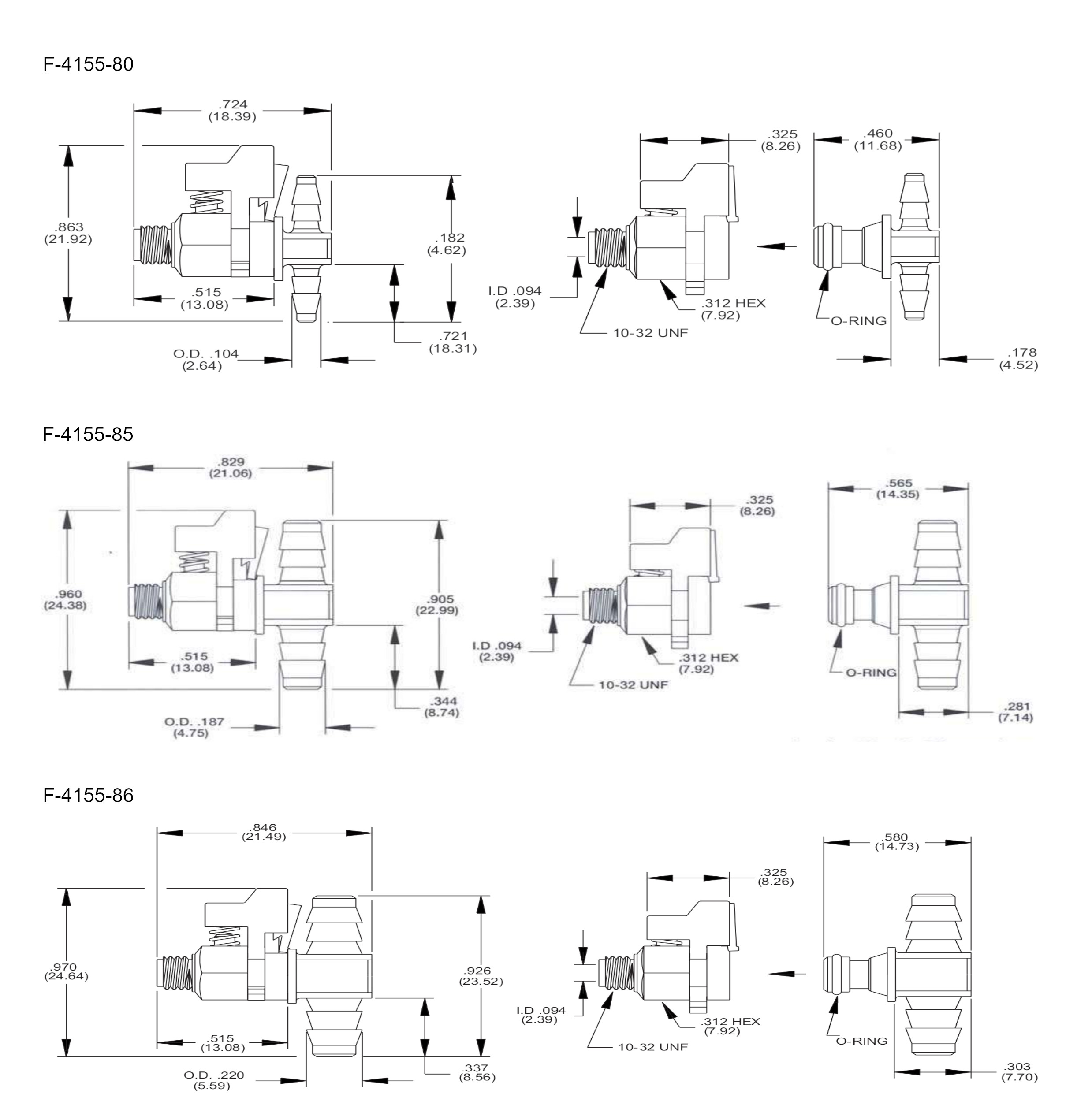

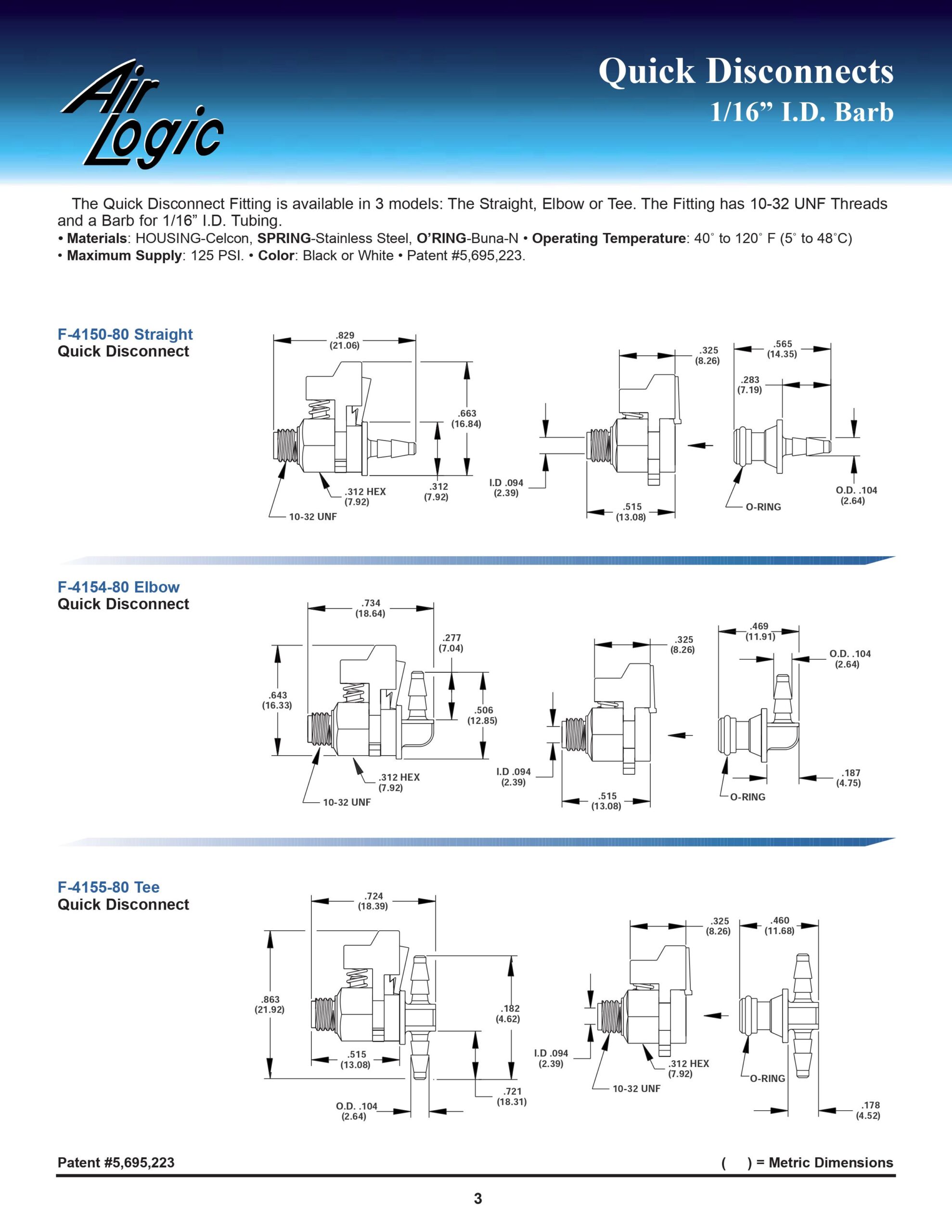

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
B86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
MOUNTING
10-32 UNF Male Threads
