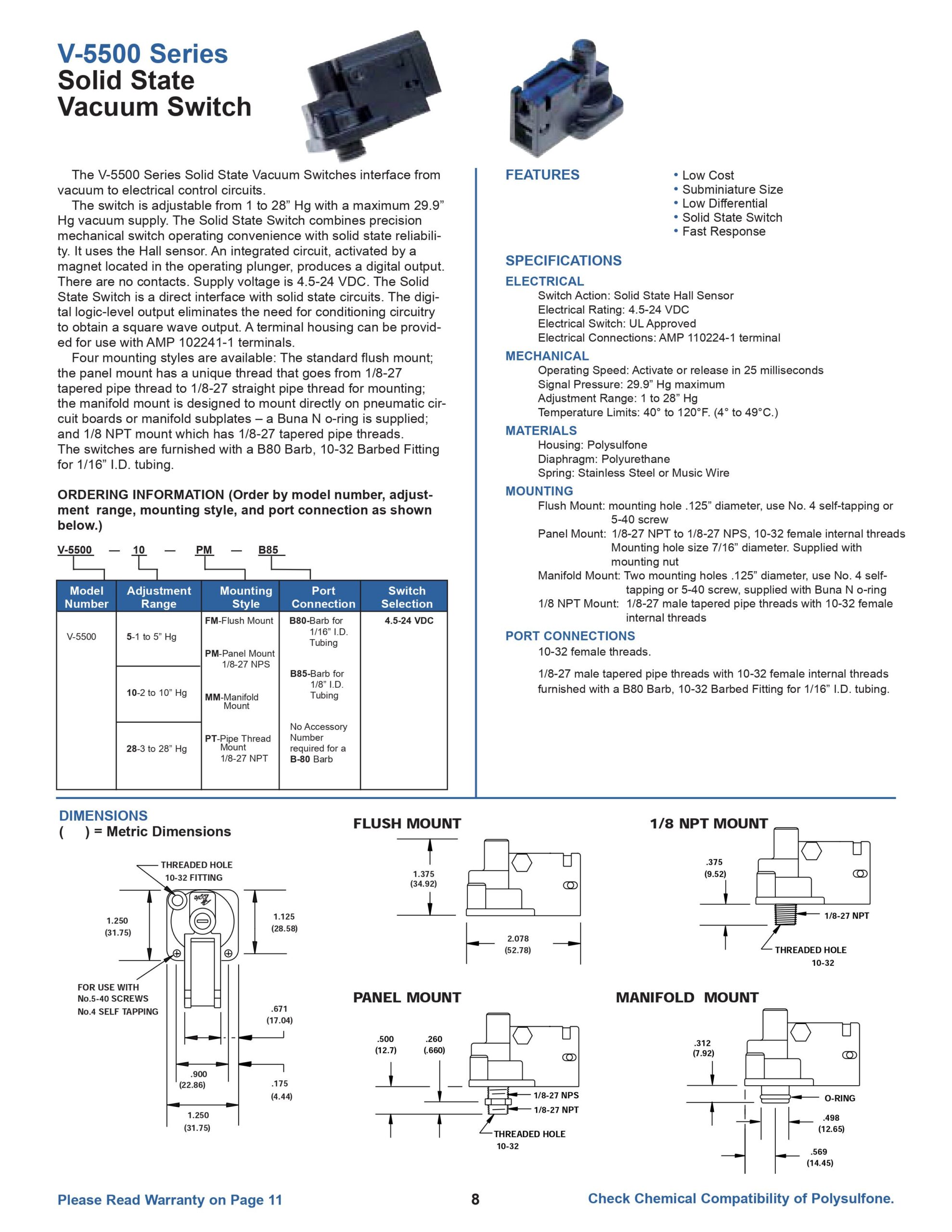

The solid state switch combines precision mechanical switch operating convenience with solid state reliability; it uses the Hall Sensor. The switch is adjustable from 1 to 28″ Hg. with a maximum signal pressure of 29.9″ Hg. An integrated circuit, actuated by a magnet located in the operating plunger, produces a digital output. The digital logic-level output eliminates the need for conditioning circuitry to obtain square wave output. There are no contacts. Supply voltage is 4.5 – 24 VDC. A terminal housing can be provided for use with AMP 102241-1 terminals. Four mounting styles are available: Flush Mount, Manifold Mount, Panel Mount, and Pipe Thread Mount. The Flush Mount has 0.125″ diameter mounting holes for mounting on a flat surface. The Manifold Mount is designed to mount directly on pneumatic circuit boards or manifold subplates; a Buna-N o-ring is supplied. The Panel Mount has a unique thread that goes from 1/8-27 tapered pipe thread to 1/8-27 straight pipe thread; a mounting nut is supplied. The Pipe Thread Mount has 1/8-27 tapered pipe threads.
FEATURES
- Low Cost
- Subminiature Size
- Low Differential
- Solid State Switch
- Fast Response
SPECIFICATIONS
Electrical Specifications
Switch Action: Solid State Hall Sensor
Electrical Rating: 4.5 – 24 VDC
Electrical Switch: UL Approved, (UL# E53576-Volume 2, Section 2)
Electrical Connections: AMP 110224-1 terminal
Mechanical Specifications
Operating Speed: Activate or release in 25 milliseconds
Signal Pressure: 29.9″ Hg
Adjustment Range: 1 to 28″ Hg
Temperature Limits: 5 to 48 °C (40 to 120 °F)
MATERIALS
Diaphragm: Polyurethane
Spring: Stainless Steel or Music Wire
PORT CONNECTIONS
10-32 female threads, furnished with barbed fitting:
B80: 10-32 UNF Barbed Fitting for Ø1.6 mm (1/16″) I.D. tubing
B85: 10-32 UNF Barbed Fitting for Ø3.2 mm (1/8″) I.D. tubing
B86: 10-32 UNF Barbed Fitting for Ø4.3 mm (0.170″) I.D. tubing
MOUNTING

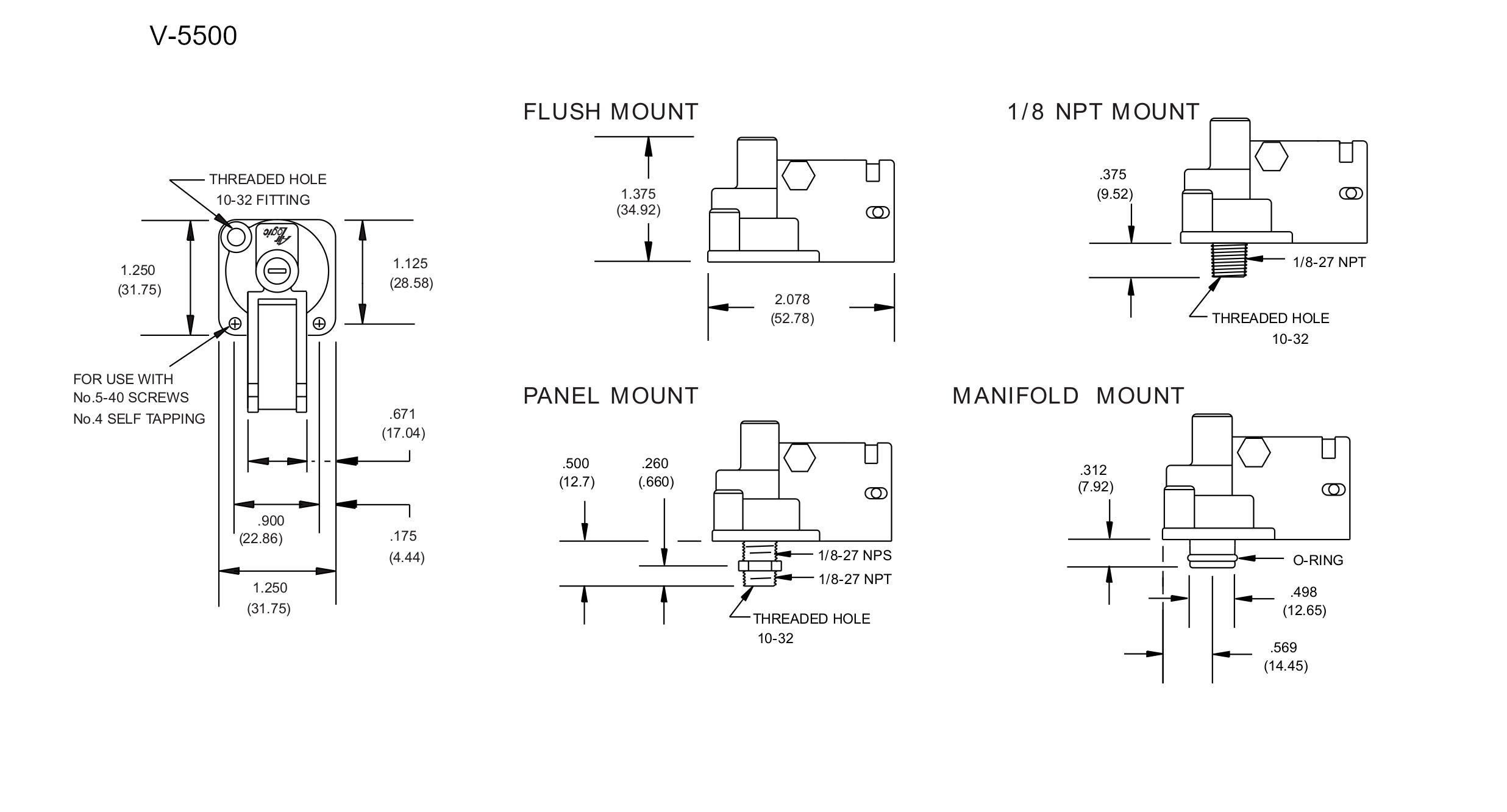

Flush Mount: 0.125″ diameter mounting hole; use No. 4 self-tapping or 5-40 screw
Manifold Mount: Two 0.125″ diameter mounting holes; use No. 4 self-tapping or 5-40 screw (A Buna-N o-ring is supplied)
Panel Mount: External 1/8-27 NPT to 1/8-27 NPS, internal threads are 10-32 UNF. Ø11.11 mm (7/16″) diameter mounting hole is required. (A mounting nut is supplied)
Pipe Thread Mount: 1/8-27 male tapered pipe threads, internal threads are 10-32 UNF
