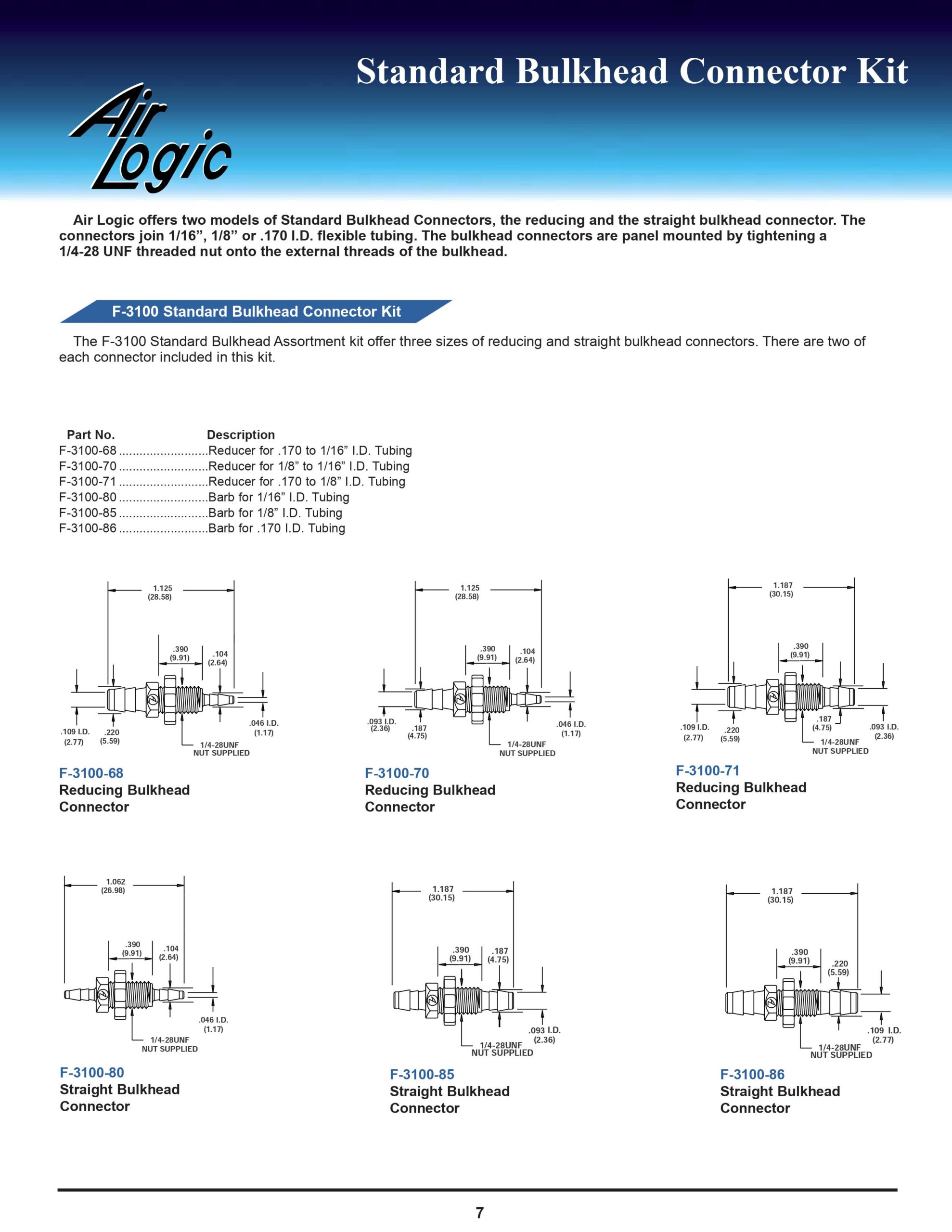

There are two of each connector included in this kit.
FEATURES
- 3 sizes of reducing and straight bulkhead connectors
SPECIFICATIONS
| Model No. | Description |
|---|---|
| F-3100-68 | Reducer for Ø4.3 mm (0.170″) to Ø1.6 mm (1/16″) I.D. Tubing |
| F-3100-70 | Reducer for Ø3.2 mm (1/8″) to Ø1.6 mm (1/16″) I.D. Tubing |
| F-3100-71 | Reducer for Ø4.3 mm (0.170″) to Ø3.2 mm (1/8″) I.D. Tubing |
| F-3100-80 | Barb for Ø1.6 mm (1/16″) |
| F-3100-85 | Barb for Ø3.2 mm (1/8″) |
| F-3100-86 | Barb for Ø4.3 mm (0.170″) |
MATERIALS
Nylon
PORT CONNECTIONS
68: Reducing Connector Ø4.3 mm (0.170″) for Ø1.6 mm (1/16″) flexible I.D. tubing
70: Reducing Connector Ø3.2 mm (1/8″) for Ø1.6 mm (1/16″) flexible I.D. tubing
71: Reducing Connector Ø4.3 mm (0.170″) for Ø3.2 mm (1/8″) flexible I.D. tubing
80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing
86: Barb Ø5.60 mm (0.220″) for Ø4.3 mm (0.170″) flexible I.D. tubing
MOUNTING
External 1/4-28 UNF threads for panel mounting; a nut is supplied.
