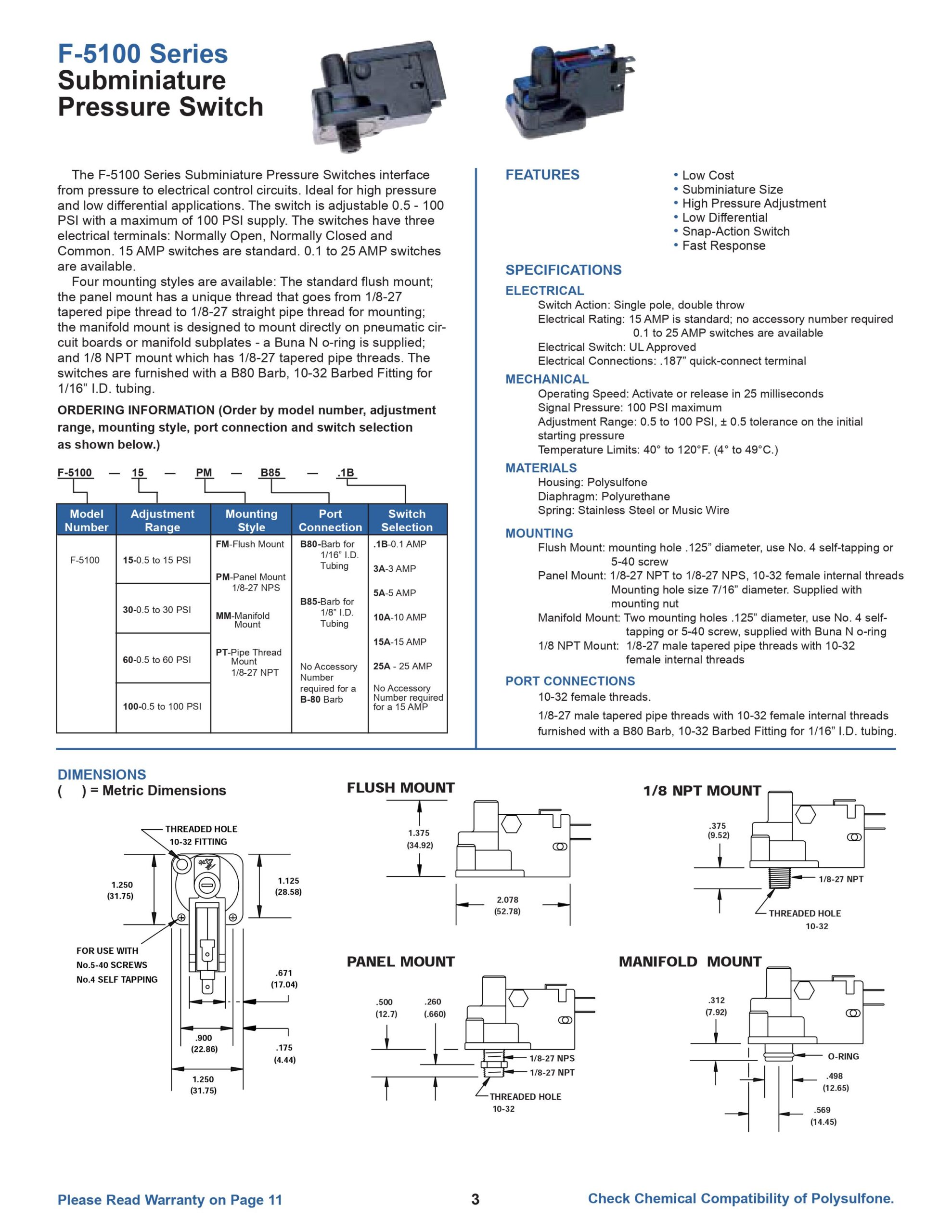

The switch is adjustable 0.5 – 100 PSI with a maximum of 100 PSI supply. The switches have three electrical terminals: Normally Open, Normally Closed and Common. 15 AMP switches are standard. 0.1 to 25 AMP switches are available. Four mounting styles are available: The standard flush mount; the panel mount has a unique thread that goes from 1/8-27 tapered pipe thread to 1/8-27 straight pipe thread for mounting; the manifold mount is designed to mount directly on pneumatic circuit boards or manifold subplates – a Buna N o-ring is supplied; and 1/8 NPT mount which has 1/8-27 tapered pipe threads. The switches are furnished with a B80 Barb, 10-32 Barbed Fitting for 1/16” I.D. tubing.
FEATURES
- Low Cost
- Subminiature Size
- High Pressure Adjustment
- Low Differential
- Snap-Action Switch
- Fast Response
SPECIFICATIONS
Electrical Specifications
Switch Action: Single pole, double throw
Electrical Rating: 15 AMP is standard; no selection number is required. 0.1 to 25 AMP switches are available
Electrical Switch: UL and CSA Approved
Electrical Connections: 0.187” quick-connect terminal
Mechanical Specifications
Operating Speed: Activate or release in 25 milliseconds
Signal Pressure: 6.89 bar (100 PSI maximum)
Adjustment Range: 0.34 to 6.89 bar (0.5 to 100 PSI) +/- 0.5 tolerance on the initial starting pressure
Temperature Limits: 5° to 48°C (40° to 120°F)
MATERIALS
Housing: Polysulfone
Diaphragm: Polyurethane
Spring: Stainless Steel or Music Wire

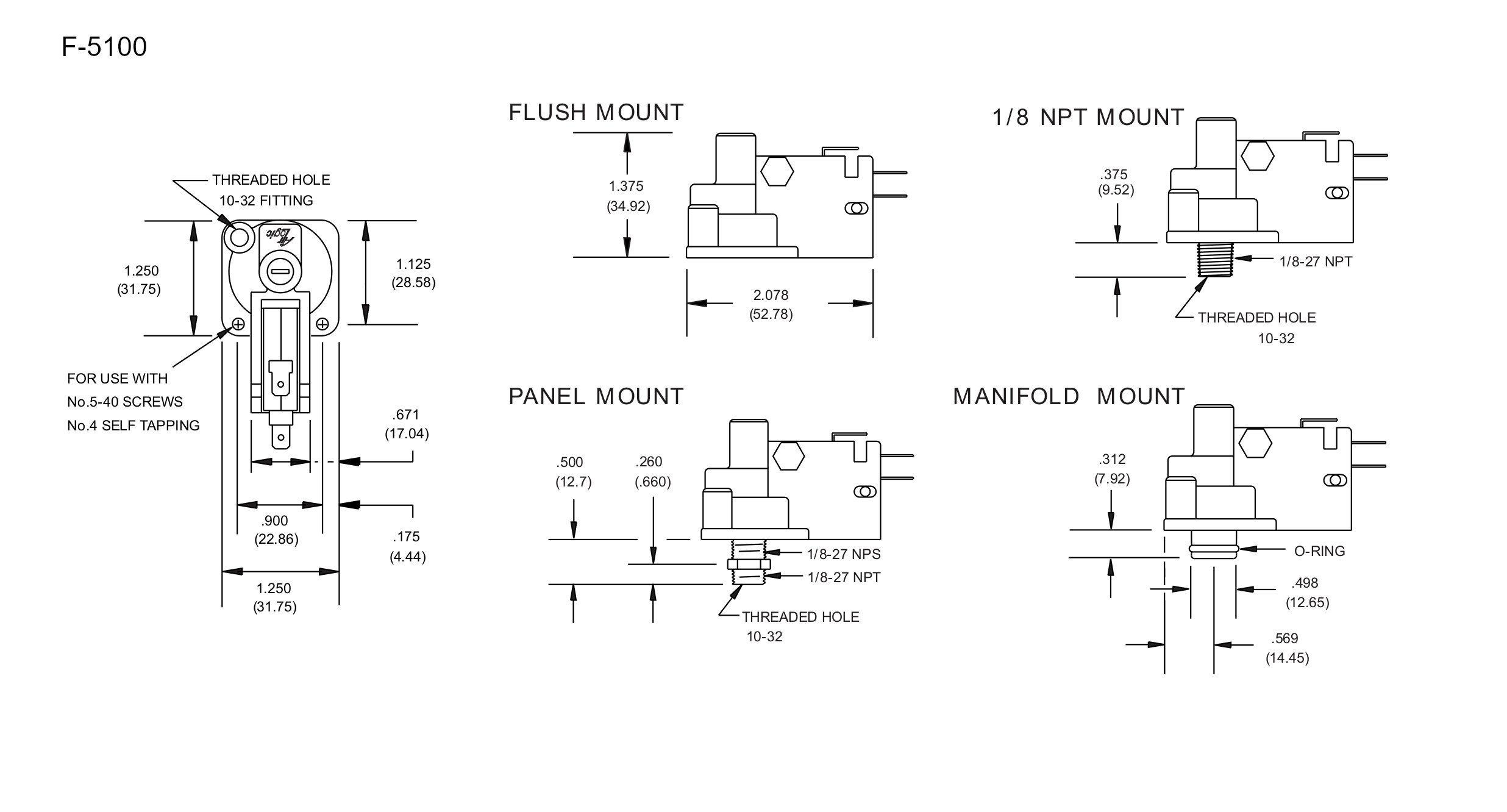

MOUNTING
Flush Mount: 0.125″ diameter mounting hole; use No. 4 self-tapping or 5-40 screw
Manifold Mount: Two 0.125″ diameter mounting holes; use No. 4 self-tapping or 5-40 screw. (A Buna-N o-ring is supplied)
Panel Mount: External 1/8-27 NPT to 1/8-27 NPS, internal threads are 10-32 UNF. Ø11.11 mm (7/16″) diameter mounting hole is required (A mounting nut is supplied)
Pipe Thread Mount: 1/8-27 male tapered pipe threads with 10-32 UNF internal threads
PORT CONNECTIONS
10-32 female threads, furnished with barbed fitting:
B80: 10-32 UNF Barbed Fitting for Ø1.6 mm (1/16″) I.D. tubing
B85: 10-32 UNF Barbed Fitting for Ø3.2 mm (1/8″) I.D. tubing
B86: 10-32 UNF Barbed Fitting for Ø4.3 mm (0.170″) I.D. tubing
