Threaded Filter Assortment Kit

Threaded Filter Assortment Kit

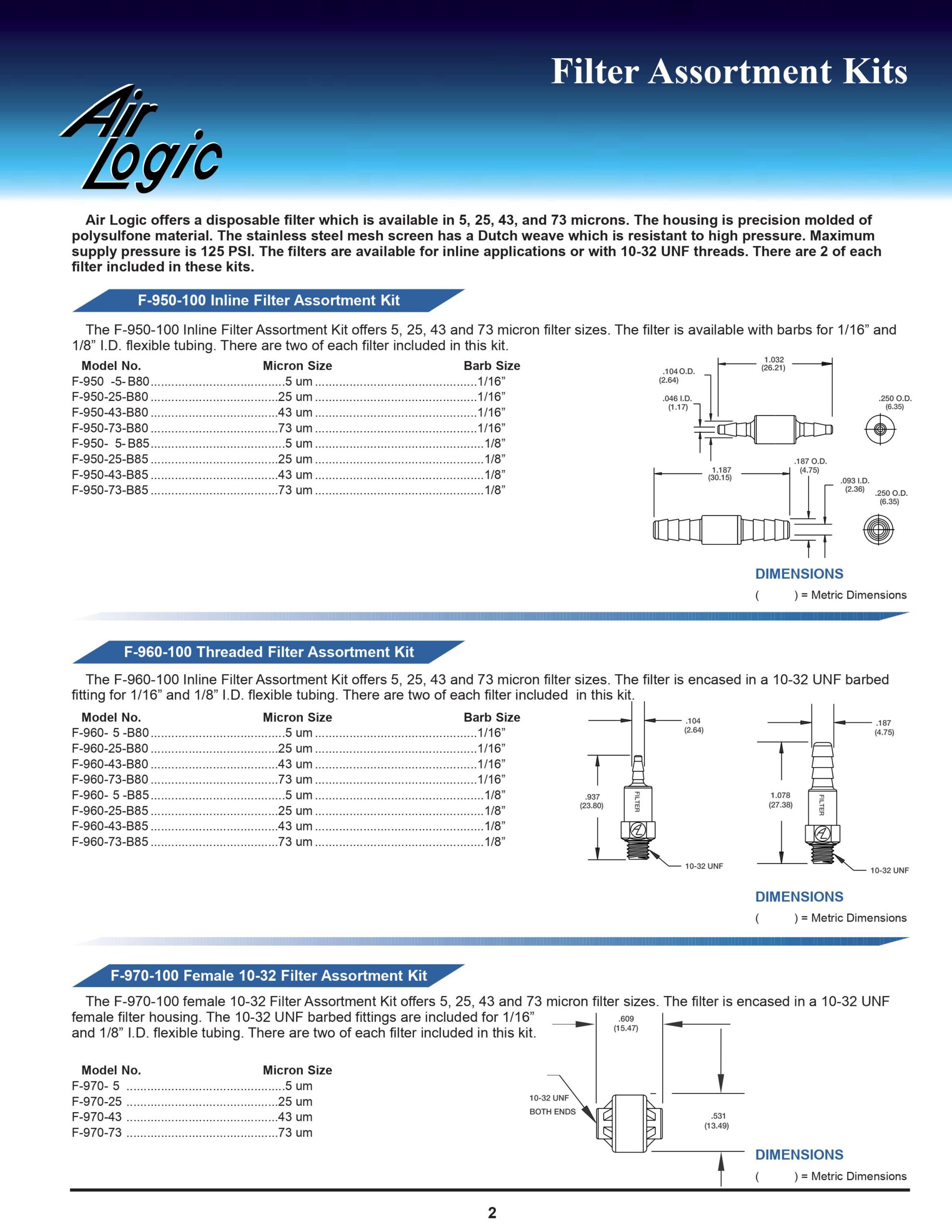

The F-960-100 Threaded Filter Assortment Kit offers 5, 25, 43 and 73 micron filter sizes.

CHF 65.00 (excl. VAT)

Quantity discounts
1-99 CHF 65.00
100-999 CHF 48.75
1000-9999 CHF 42.25
10000-24999 CHF 39.65
25000-49999 CHF 38.35
50000-99999 CHF 37.05
100000+ CHF 65.00
Delivery time: 2 - 4 weeks
Contact us for shorter delivery times Art.-Nr.: F-960-100 Categories: ,

The filter is encased in a 10-32 UNF barbed fitting for 1/16″ and 1/8″ I.D. flexible tubing. There are two of each filter included in this kit.

FEATURES

  • 5, 25, 43 and 73 micron filter sizes
  • Encased in a 10-32 UNF barbed fitting
  • For 1/16″ and 1/8″ I.D. flexible tubing

SPECIFICATIONS

Model No. Micron Size Barb Size
F-960-5-B80 5 um Ø1.6 mm (1/16″)
F-960-25-B80 25 um Ø1.6 mm (1/16″)
F-960-43-B80 43 um Ø1.6 mm (1/16″)
F-960-73-B80 73 um Ø1.6 mm (1/16″)
F-960-5-B85 5 um Ø3.2 mm (1/8″)
F-960-25-B85 25 um Ø3.2 mm (1/8″)
F-960-43-B85 43 um Ø3.2 mm (1/8″)
F-960-73-B85 73 um Ø3.2 mm (1/8″)

MATERIALS

Housing: Blue Polysulfone
Filter Media: 316 stainless steel filter screen

PORT CONNECTIONS

B80: Barb Ø2.65 mm (0.104″) for Ø1.6 mm (1/16″) flexible I.D. tubing
B85: Barb Ø4.75 mm (0.187″) for Ø3.2 mm (1/8″) flexible I.D. tubing

MOUNTING

10-32 UNF male threads

Filter Size

5 µm, 25 µm, 43 µm, 73 µm
Port Connection

B80 – Ø2.65 mm barb for Ø1.6 mm I.D. tubing, B85 – Ø4.75 mm barb for Ø3.2 mm I.D. tubing
